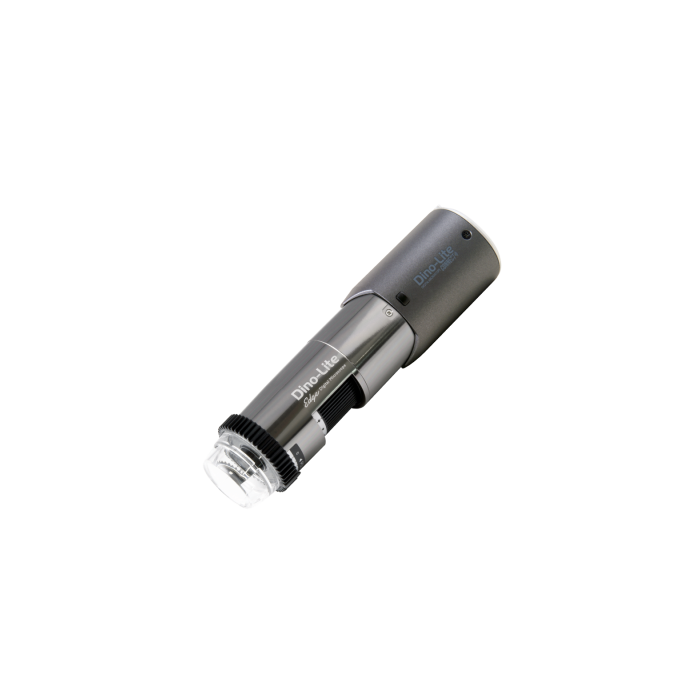

Product Information: WF7515MZT USB Microscope

Key Features:
• 5 Megapixel Resolution
• Up to 220x Magnification
• Polarization Filter
• Flexible Light Control (FLC)
• Measurement Function & Calibration
• Automatic Magnification Reading (AMR)
• Measurement and Calibration

The WF7515MZT USB Microscope allows precise measurements through its software. You can easily measure lines, angles, radii, and circles. The measurement results, along with the corresponding image, can be exported to Excel with just a click, enabling the creation of a detailed measurement report.

Thanks to the automatic magnification reading (AMR) function, the magnification is automatically transmitted to the software, improving measurement accuracy and reducing errors. Measurements can be taken in both LIVE images and saved images, offering flexible analysis.

A precise calibration is essential for accurate measurements. With the included calibration standard and the easy-to-use software, the calibration process is simple and quick. The DinoCapture software guides you through the steps to ensure reliable and accurate calibration.

Lighting and Imaging
The microscope features 8 white LEDs in a ring light, which can be controlled using Flexible Light Control (FLC). The LEDs can be dimmed from 100% to 6.25% or switched off entirely. Additionally, the LEDs can be toggled in pairs to allow flexible lighting from different angles, ensuring optimal illumination for various types of samples.

The polarization filter is an essential tool for controlling light reflections on your sample. It helps reduce reflections, especially on shiny surfaces, and improves accuracy.

The front cap system allows for operation without a front cap for a clear and undistorted view of the sample. Various front caps are included (may vary depending on the model) to fit different applications. Diffusers can also be used to scatter light more effectively, reducing reflections and enhancing image quality.

Durable Design
Constructed with high-quality aluminum, the WF7515MZT is both robust and lightweight, making it perfect for mobile use and various applications.

Product Specifications:
• Manufacturer: Dino-Lite
• Product Number: WF7515MZT
• Working Distance: Standard
• Resolution: 5 Megapixels
• Magnification: 20x - 220x
• Connection: USB 2
• Housing Material: Aluminum
• Lighting: White / 8 LEDs
• Automatic Magnification Reading (AMR)
• Measurement Function & Calibration
• Polarization Filter
• Interchangeable Front Caps
• Flexible Light Control (FLC)

What Are Dino-Lite Microscopes?
Dino-Lite USB Hand Microscopes are a series of high-performance microscopes that easily connect to a Windows PC or Mac via USB. Some models are wireless and can transmit signals directly to smartphones. The included software enables quick measurement of surfaces and components. Results can be exported directly to Excel, and images can be exported in various formats for further processing. With resolutions up to 8 Megapixels, even the smallest details are clearly visible, and the built-in chipset ensures excellent color and image reproduction. Depending on the model, Dino-Lite microscopes offer magnification up to 900x, with typical use ranging from 50x to 230x magnification.

Our Recommendation:
We recommend pairing this microscope with the RK-06 Stand for fine adjustment and cross table functionality, ensuring optimal results in your laboratory.
