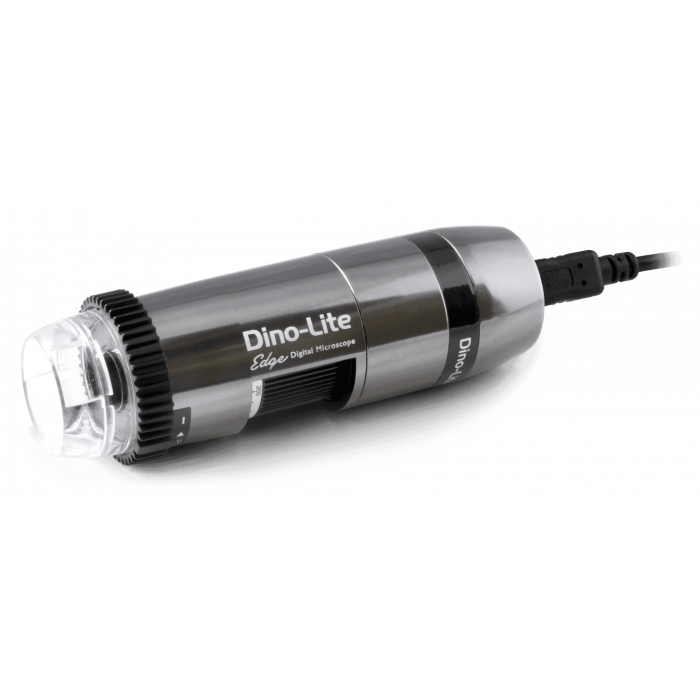

Product Information: AM4117MZT USB Microscope

Key Features
• Polarization Filter
• FLC – Flexible Light Control
• Measurement Function and Calibration
• 1.3 Megapixel Resolution
• Up to 220x Magnification

Overview
The AM4117MZT USB Microscope is a high-precision tool designed for detailed measurement and analysis. Its measurement function enables users to determine lines, angles, radii, and circles, while results and images can be exported directly to Excel for documentation and analysis.

For accurate measurements, calibration is essential. The included calibration tool and intuitive software ensure the process is quick and efficient. The software guides users step by step, guaranteeing precise and reliable results.

Lighting & Polarization Technology
Proper lighting is essential for high-quality imaging. This microscope features:

FLC – Flexible Light Control:
• Adjustable LED brightness (from 100% down to 6.25%)
• LEDs can be controlled in pairs for directional lighting
• Built-in Polarization Filter:
• Reduces unwanted reflections and glare
• Ideal for examining reflective materials like glass and metals
• Front Cap System for Enhanced Usability

The interchangeable front cap system offers:

• Option to operate without a front cap for unobstructed viewing
• Multiple front caps included (varies by model) to suit different applications
• Diffusers for optimized light distribution, reducing reflections for better image clarity
• Robust and Portable Design

The AM4117MZT is built with a durable aluminum housing, ensuring:
• High resistance to wear and impact
• Lightweight construction for portable use in various environments
• Reliable performance for laboratory, industrial, and research applications

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Technical Specifications
• Manufacturer: Dino-Lite
• Model: AM4117MZT
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification: 10-220x
• FLC – Flexible Light Control
• Connection: USB 2.0
• Housing Material: Aluminum
• Illumination: 8 White LEDs
• Measurement and Calibration Function
• Polarization Filter
• Interchangeable Front Caps
• eFLC – Enhanced Flexible Light Control

What Are Dino-Lite Microscopes?
Dino-Lite microscopes are high-performance digital imaging devices that connect via USB to Windows and Mac computers. Certain models also feature wireless connectivity, allowing direct access from smartphones and tablets.

Fast surface and component measurement capabilities
Instant data export to Excel for seamless reporting
Compatible with multiple image formats for processing and analysis
Up to 8-megapixel resolution for detailed and sharp images
Advanced image processing for enhanced color and clarity
Magnification up to 900x, depending on the model
Ideal for professionals in science, quality control, and industrial inspection

Recommended Accessory
For maximum stability and precision, we suggest pairing this microscope with a RK-10 stand, providing fine adjustments for detailed examinations.
