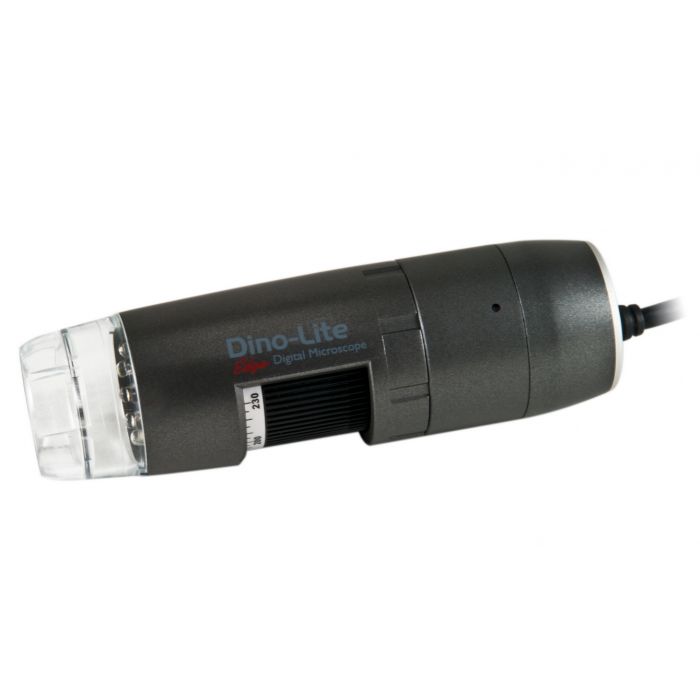

Product Information: AM4115T-JV USB Microscope

Key Features:
• Measurement function with calibration
• 1.3 Megapixel resolution
• Up to 220x magnification
• Infrared illumination (395nm)
• Interchangeable front caps

Overview
The AM4115T-JV USB microscope is designed for precise measurement and high-quality imaging. It includes an integrated measurement function that allows users to analyze lines, angles, radii, and circles with ease. Measurement results can be exported to Excel with a single click, ensuring efficient documentation and reporting.

To maintain high measurement accuracy, the included calibration standard and DinoCapture software allow for fast and easy calibration. The software provides a step-by-step guide to ensure precise and consistent results.

Enhanced Optical Performance
This model features an innovative front cap system, allowing operation without a front cap for unobstructed viewing. Various interchangeable front caps are provided to adapt the device to different applications. The use of diffusers improves light distribution, minimizing reflections and enhancing overall image clarity.

Durability and Portability
Built with high-quality plastic, the AM4115T-JV offers robust durability and lightweight handling, making it an ideal choice for portable applications across different work environments.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Technical Specifications:
• Manufacturer: Dino-Lite
• Model Number: AM4115T-JV
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification: 20x - 220x
• Connection: USB 2.0
• Housing Material: Plastic
• Illumination: 4 Infrared LEDs (395nm)
• Measurement function with calibration
• Interchangeable front caps
For enhanced stability and precision, consider pairing this microscope with a compatible RK-06 stand.

What Are Dino-Lite Microscopes?
Dino-Lite USB microscopes are versatile digital microscopes that connect directly to Windows and Mac computers via USB. Some models offer wireless connectivity, enabling direct image transmission to smartphones and tablets.

With advanced measurement tools, the DinoCapture software allows users to analyze surfaces, components, and fine details with high precision. Measurement results can be exported to Excel, while captured images can be saved in multiple formats for further processing and analysis.

Offering resolutions up to 8 megapixels, Dino-Lite microscopes provide crystal-clear imaging, capturing even the smallest details with exceptional accuracy. The high-performance sensor ensures accurate color reproduction and sharp image quality.

Depending on the model, magnifications of up to 900x are available, though most practical applications typically require magnifications between 50x and 230x. Various specialized features further enhance the usability and versatility of the Dino-Lite microscope range.

Our Recommendation:
For optimal performance, we recommend using this microscope with the RK-06 stand, which provides precise fine adjustments for detailed microscopy applications.
