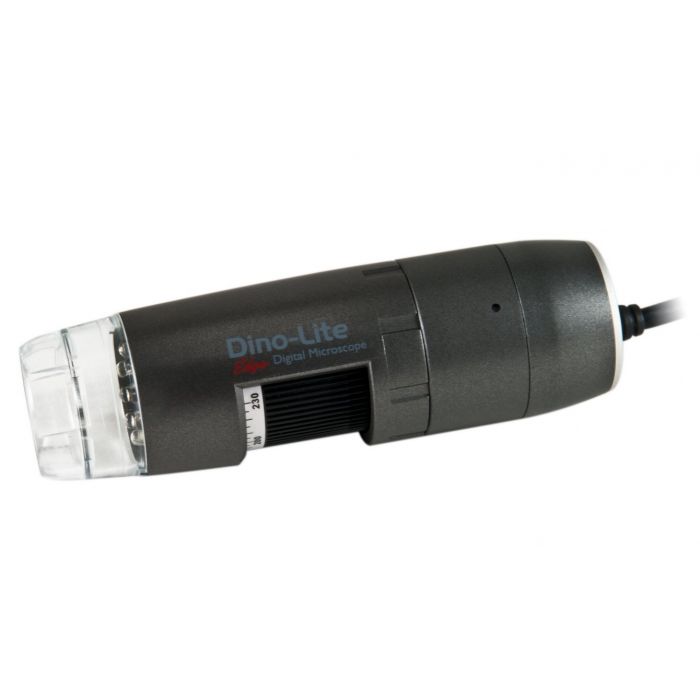

Product Information: AM4115T USB Microscope

Key Features:
• Magnification up to 230x
• 1.3 Megapixel resolution
• Measurement function with calibration
• FLC – Flexible Light Control

Overview:
The AM4115T USB microscope is a high-precision tool designed for accurate measurements and analysis. The integrated measurement function allows users to measure lines, angles, radii, and circles quickly and efficiently. All measurement results and images can be exported directly to Excel, facilitating comprehensive documentation.

For precise and reliable measurements, calibration is essential. The included calibration standard, along with the user-friendly DinoCapture software, ensures an effortless and accurate calibration process. The software provides step-by-step guidance, guaranteeing optimal results.

The microscope features an advanced front cap system, allowing users to operate without a front cap for an unobstructed view of the specimen. Various interchangeable front caps are included, enabling customization for specific applications. Diffusers help improve light dispersion, reducing reflections and enhancing image clarity.

Built with durable yet lightweight plastic, the AM4115T is designed for portability and long-term use, making it an ideal choice for laboratory, industrial, and professional applications.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Technical Specifications:
• Manufacturer: Dino-Lite
• Model Number: AM4115T
• Working Distance: Standard
• Resolution: 1.3 Megapixels
• Magnification: 20x - 230x
• FLC – Flexible Light Control
• Connection: USB 2.0
• Housing Material: Plastic
• Illumination: 8 white LEDs
• Measurement function with calibration
• Interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB microscopes offer high-quality digital imaging for various applications and can be connected to Windows and Mac computers via USB. Some models include wireless functionality, enabling direct image transmission to smartphones and tablets.

The DinoCapture software provides advanced measurement tools, making it easy to analyze surfaces, components, and fine details with high accuracy. Measurement results can be exported to Excel, while captured images can be saved in multiple formats for further processing and review.

With resolutions up to 8 megapixels, Dino-Lite microscopes offer sharp and clear imaging, capturing even the smallest details with precision. The high-performance sensor ensures excellent color accuracy and sharpness.

Depending on the model, magnifications of up to 900x are available, though most practical applications typically require magnifications between 50x and 230x. Various specialized features further enhance the usability and versatility of the Dino-Lite microscope range.

Our Recommendation:
For optimal stability and precision, we recommend pairing this microscope with the RK-06 stand, which provides fine adjustment controls for precise focusing. Additionally, the Dino-Lite cross table and multi-functional V-profile further enhance microscopy applications.
