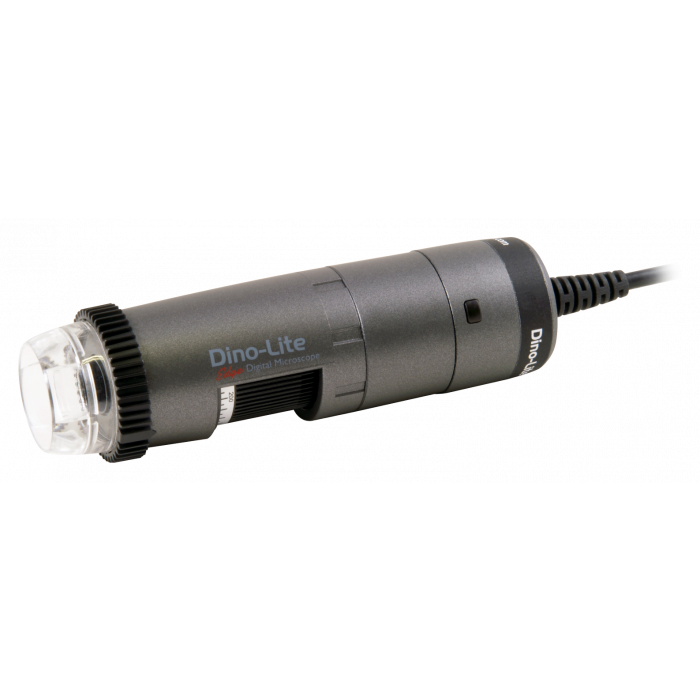

Product Information: AF4515ZTL USB Microscope

Key Features:
• FLC – Flexible Light Control
• Integrated polarization filter
• 1.3 Megapixel resolution
• Measurement function with calibration
• Magnification up to 140x

The AF4515ZTL USB Microscope is designed for precise measurements, which can be performed quickly and efficiently using its intuitive software. Users can measure lines, angles, radii, and circles with ease. Measurement results, along with the corresponding images, can be exported to Excel with a single click, making it easy to generate detailed measurement reports.

Accurate Calibration for Reliable Results
Proper calibration is crucial for accurate and repeatable measurements. The included calibration tool and user-friendly software simplify the calibration process, guiding users through each step to ensure optimal precision.

Advanced Lighting Control & Polarization Filter
Effective illumination is essential for high-quality microscopy results. The Dino-Lite AF4515ZTL is equipped with a ring light consisting of eight white LEDs. With FLC technology, users can adjust the LED brightness from 100% down to 6.25% or turn them off completely. Additionally, the LEDs can be switched on or off in pairs, allowing directional lighting for enhanced imaging results.

The integrated polarization filter further enhances lighting control by reducing glare and reflections, making it particularly useful when examining shiny or reflective surfaces. This feature helps achieve clearer, more precise observations, making it an indispensable tool for professional applications.

Durable, Lightweight & Portable
Built with a sturdy plastic casing, the AF4515ZTL USB Microscope offers long-lasting durability and stability, making it ideal for both stationary and mobile use.

Looking for the perfect Dino-Lite microscope? Reach out to us via the contact form below—we’re happy to help!

Lighting and control units are a valuable addition to Dino-Lite microscopes.

Technical Specifications:
• Brand: Dino-Lite
• Model Number: AF4515ZTL
• Working Distance: Long
• Resolution: 1.3 Megapixels
• Magnification Range: 10x – 140x
• Lighting Control: FLC – Flexible Light Control
• Connection Type: USB 2.0
• Material: Plastic casing
• Features: Measurement function, calibration, polarization filter, interchangeable front caps

What Are Dino-Lite Microscopes?
Dino-Lite USB handheld microscopes are a versatile series of digital microscopes that easily connect to Windows and Mac computers via USB. Additionally, some models feature wireless connectivity, allowing direct signal transmission to smartphones.

The integrated software simplifies surface and component measurements, allowing users to transfer results directly to Excel. Images can also be exported in various formats for further processing.

With resolutions of up to 8 megapixels, even minute details are displayed with outstanding clarity. The high-performance chipset ensures superior color accuracy and image quality. Depending on the model, magnification levels of up to 900x are possible, though typical applications range between 50x and 230x magnification.

Dino-Lite microscopes come with a range of features, making them a perfect choice for professional and industrial applications.

Our Recommendation:
For exceptional microscopy results, pair this microscope with the RK-10 stand, which features fine adjustment controls for enhanced precision.
